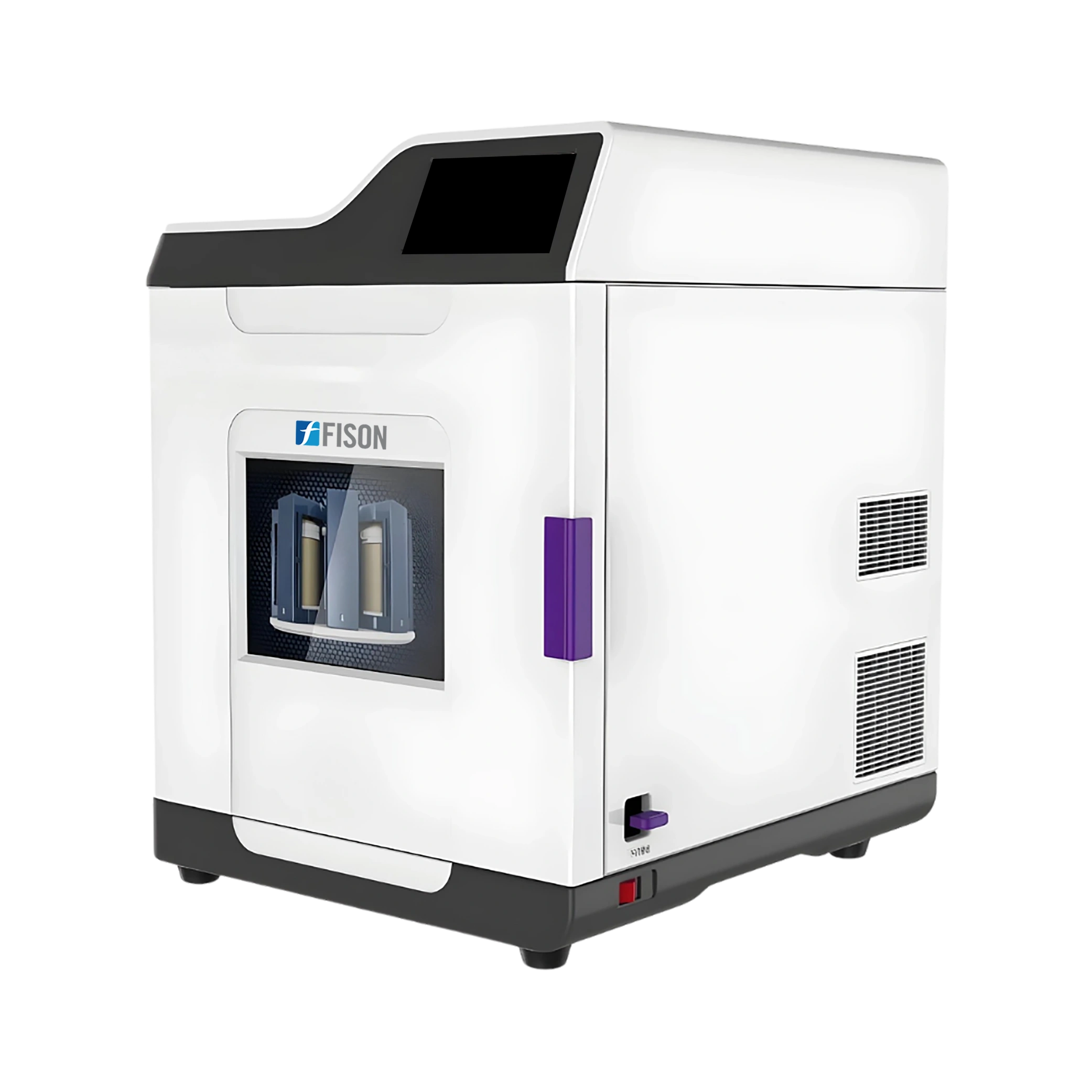

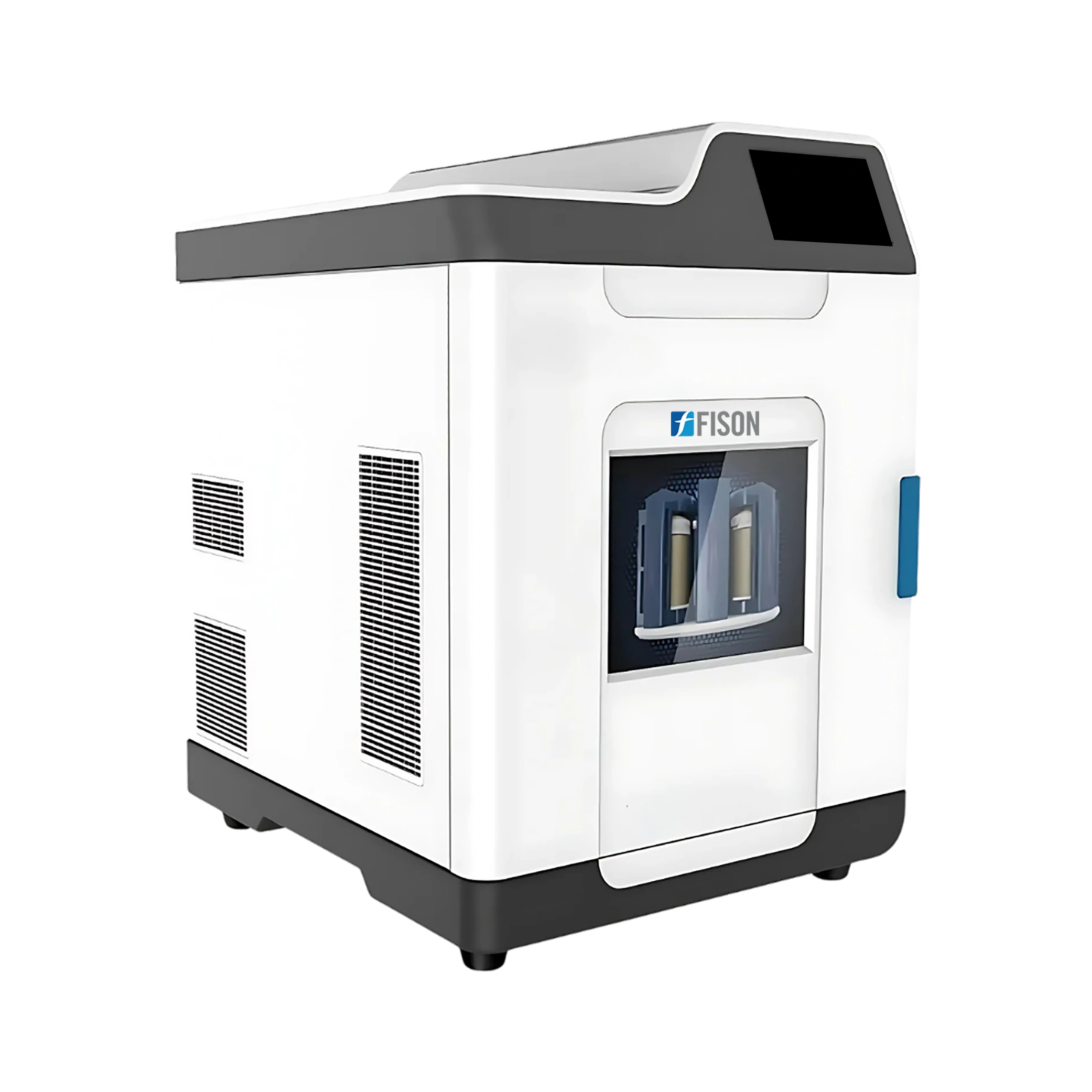

Microwave Digestion System FM-MDS-A102
Microwave Digestion System FM-MDS-A102 operates within a wide temperature range of –40 to 500 ℃, ensuring precise and efficient sample preparation. It offers 50L capacity for safe multi-sample processing. A durable PEEK outer tank and TFM1700 inner tank provide chemical resistance and safety. Our advanced digestive system adopts PID frequency conversion heating ensures stability. Its high-resolution LCD displays temperature, pressure, and operational status in real time.
$16,788.00
Specifications
| Oven Chamber | 50L |
| Temperature Measurement Range | -40 to 500 ℃ |
| Temperature Control Range | 0-300 ℃ |
| Ambient Temperature | 0-50 ℃ |
| Operating Temperature | 250 ℃ |
| Temperature Resistance | 600 ℃ |
| Pressure Resistance | 85mpa |
| Control Pressure Range | 0-6Mpa |
| Control Pressure Accuracy | 0.01Mpa |
| Pressure Control range | 0-10mpa |
| Temperature accuracy | 0.1 ℃ |
| Control accuracy | ±0.1 ℃ |
| Display accuracy | ±1 ℃ |
| Vessel Holding Capacity | 12 Vessels |
| Vessel Volume | 100ml |
| Warming slope | 1-50 ℃/min |
| Microwave leakage | ≤0.3mW/cm2 |
| Cooling time | ≤25 min |
| Protective spraying | PFA |
| Heating mode | PID frequency conversion technology |
| Outer tank material | PEEK |
| Inner tank material | TFM1700 |
| Microwave Frequency | 2450(MHz) |
| Microwave Power | 1500W |
| Power Supply | AC220V / 50Hz |
| Dimension (L×B×H) | 770 × 620 × 840 mm |
| Packaging Dimension 1 (L × W × H) | 630 × 640 × 865 mm |
| Packaging Dimension 2 (L × W × H) | 600 × 600 × 650 mm |
| Net Weight | 77 Kg |
| Gross Weight 1 | 70 Kg |
| Gross Weight 2 | 90 Kg |
Features
- Stainless steel construction
- Chemical and corrosion resistant
- Realtime temperature and pressure monitoring
- Continuous microwave stirring
- Explosion proof design
- 360 degree Unidirectional turntable rotation
- Rapid cooling with high power exhaust
Applications
- Microwave Digestion System is used in food testing, environmental analysis, pharmaceutical research, metallurgy, chemical processing, geological studies, forensic investigations, material science, and manufacturing quality control
Accessories
Accessories
Quantity
Rotor SVT Holder
1
SVT Vessels
1
Handling Tools
1
High pressure digestion reaction tank rack
1
High precision platinum resistance temperature sensor
1
Anticorrosive telescopic ventilation pipe for exhaust cooling system
1
High strength HP sample holder
3
two-way ratchet wrench
1
Lock wrench for air release valve
1
Sealed cup lid expander
1
Explosion proof membrane
500
stainless steel tweezers
1
3.5A Spare fuse
1
10A Spare fuse
1
