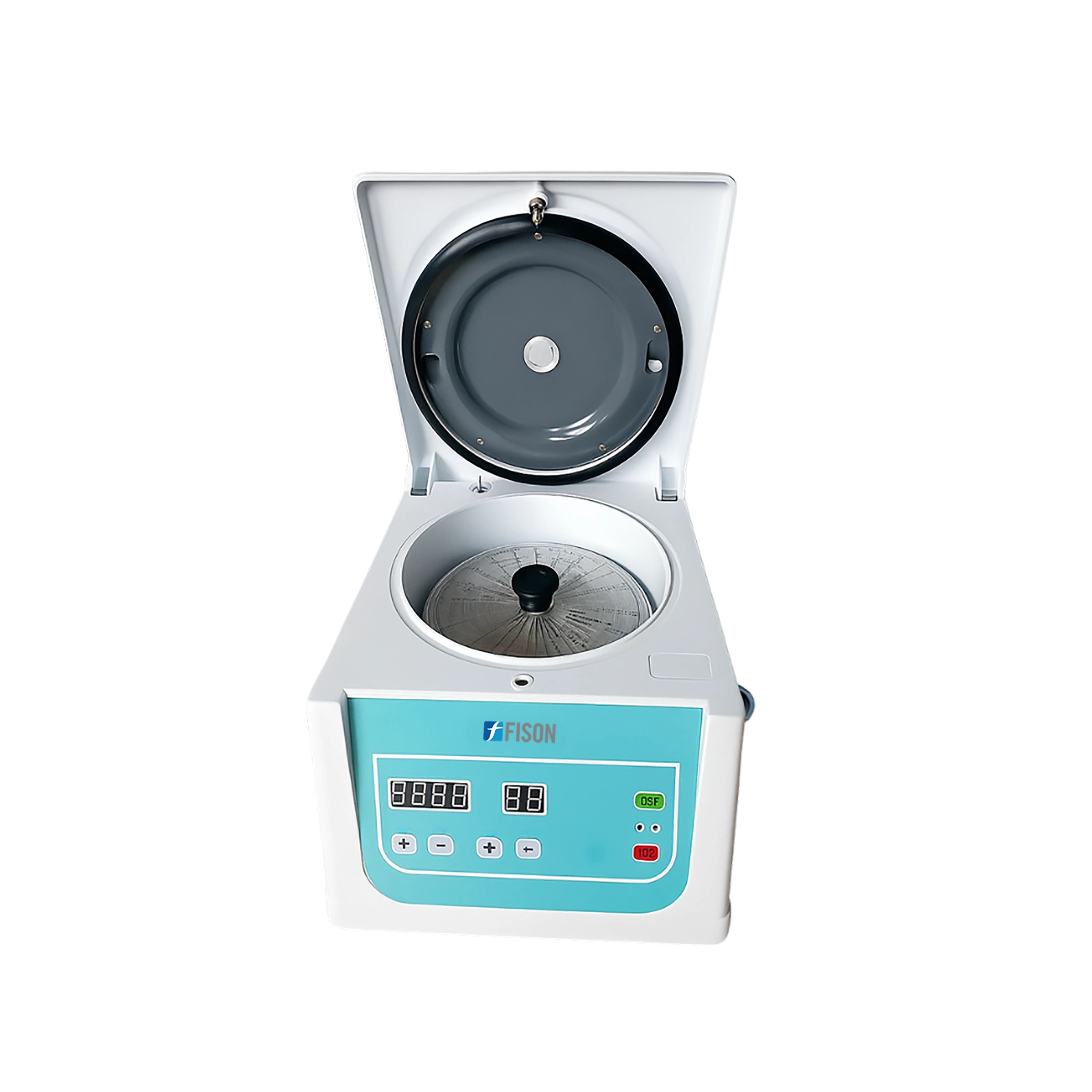

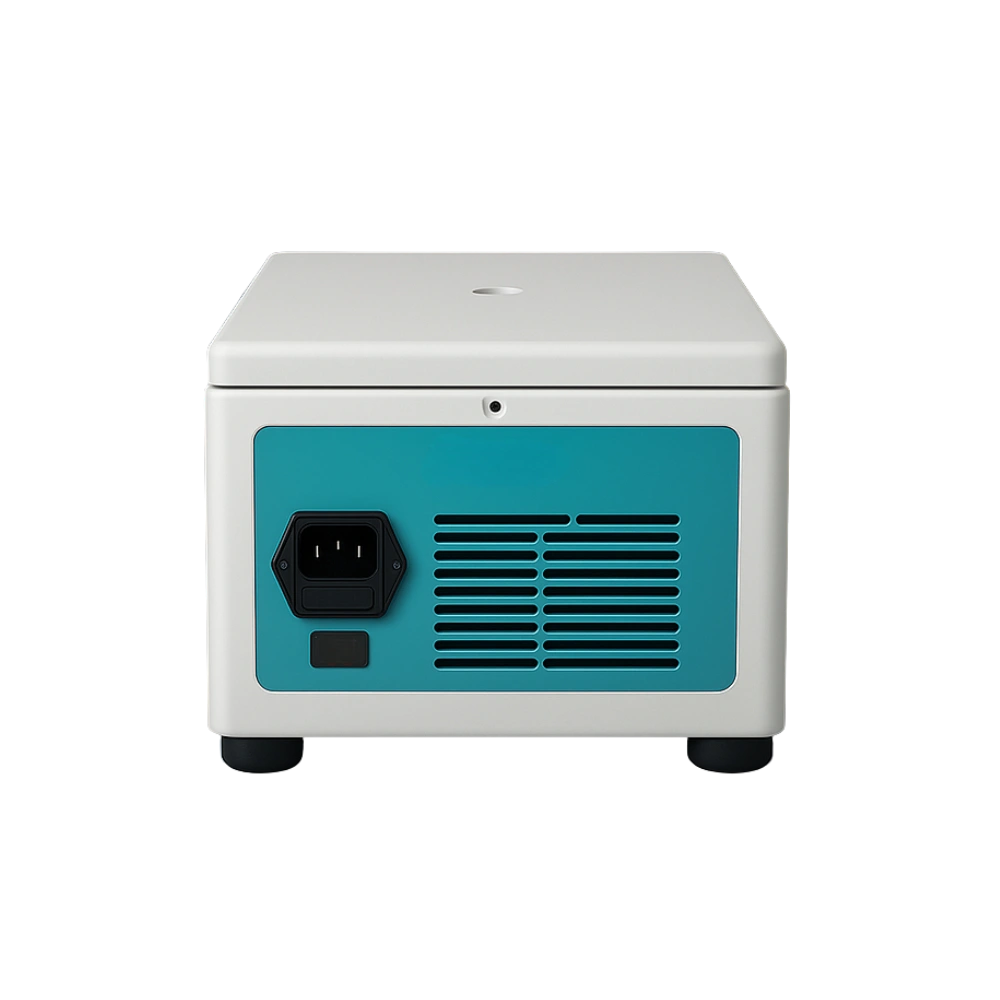

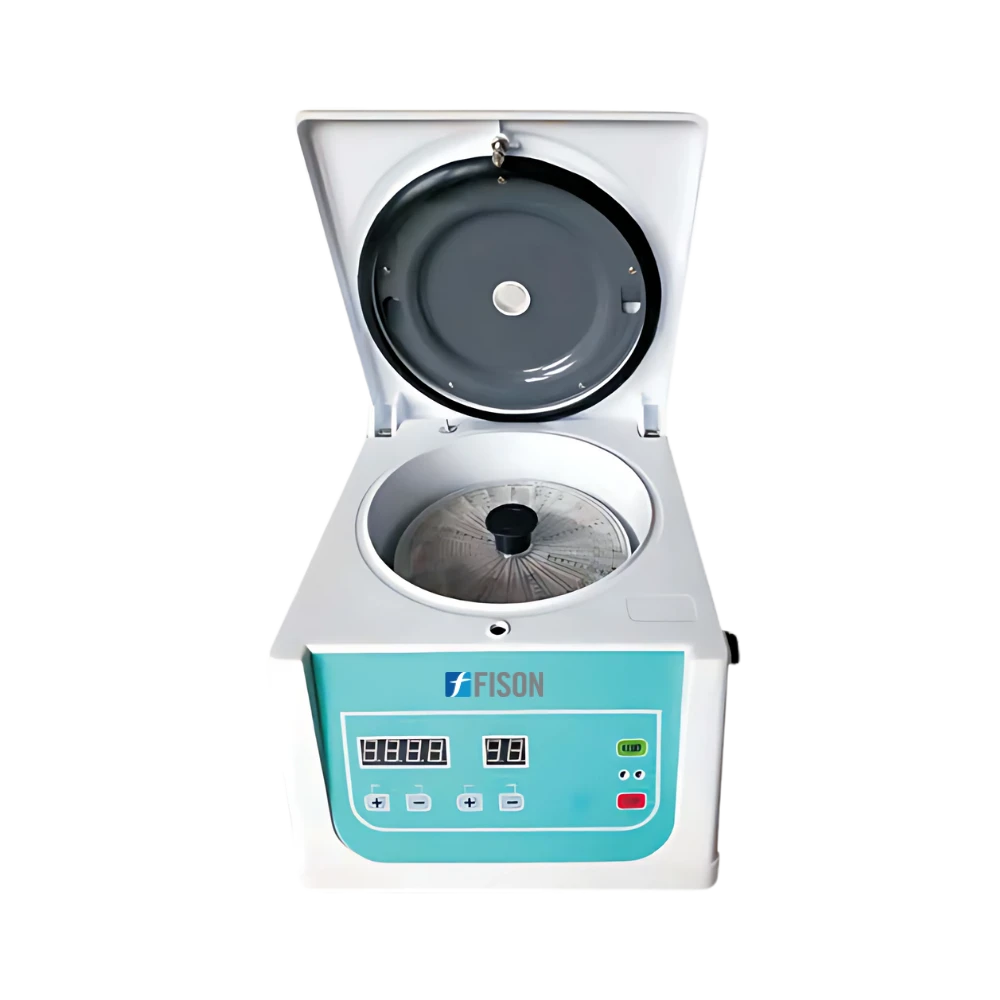

Hematocrit Centrifuge FM-HEC-A105
Hematocrit Centrifuge FM-HEC-A105 offers a maximum speed of 12000 rpm for accurate and rapid blood separation. It features a maximum capacity of 24 capillaries (1.75 mm × 75 mm), ideal for hematocrit determination. It includes features like electronic door lock, imbalance protection, and timing range up to 99 minutes for safe and efficient operation. It is equipped with an LED display for clear monitoring of speed, RCF, and time.
$1,675.00
Specifications
| Maximum Speed | 12000rpm |
| Maximum RCF | 14800×g |
| Capacity | 24 Capillaries (1.75mm × 75mm length) |
| Time Range | 0 to 99 min |
| Speed Accuracy | ±50r/min |
| Noise | Less than or equal to 55db(A) |
| Motor | Brushless motor |
| Rotor | With read card |
| Power Supply | 110V or 220 to 230V |
| Dimension (L×W×H) | 25.7×39×30 mm |
| Weight | 8 kg |
Features
- Brushless DC motor
- Touchscreen control panel.
- Silent stable operation
- Multiple rotor options
Applications
- The Hematocrit Centrifuge FM-HEC-A105 is primarily used to measure the volume percentage of red blood cells in blood samples with high accuracy. It is widely utilized in clinical laboratories, hospitals, and hematology departments for diagnostic and research purposes.
Standard Rotor Selection
Rotor Name
Max Speed (rpm)
Max capacity (ml)
Max RCF (g)
Horizontal Rotor
13000rpm
1.5ml × 12
14800g
24 capillary rotor
13000rpm
1.75mm × 75mm
14800g
Optional Rotor Selection
Rotor Name
Max Speed (rpm)
Max capacity (ml)
Max RCF (g)
Angle Rotor 1
16500rpm
1.5ml × 12
18260×g
Angle Rotor 2
13500rpm
5ml × 10
12830×g
